Finish: Black Phosphated/Grey Phosphated/Zinc Plated
Materials: Carbon Steel/Stainless Steel

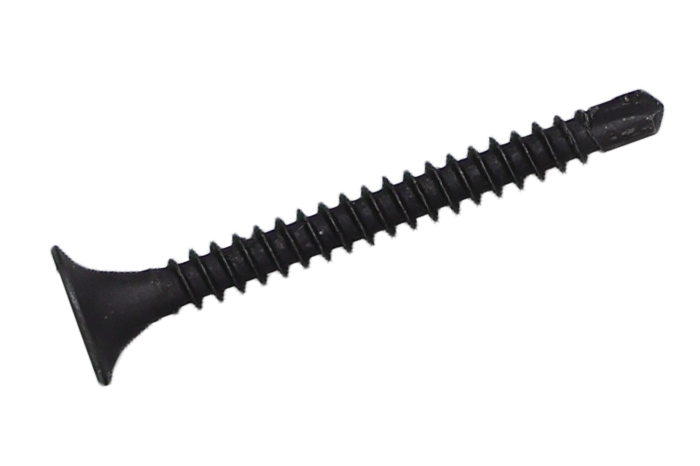

PHS BUGLE HEAD DRYWALL SELF DRILLING SCREW
| Size | D | Dk | P | PH | ||
| Max. | Min. | Max. | Min. | ±10% | No. | |
| 3.5 | 3.53 | 3.35 | 8.40 | 8.00 | 1.30 | 2 |
| 3.9 | 3.91 | 3.73 | 8.40 | 8.00 | 1.30 | 2 |
| 4.2 | 4.22 | 4.04 | 8.40 | 8.00 | 1.40 | 2 |
| 4.8 | 4.80 | 4.62 | 9.20 | 8.80 | 1.60 | 2 |
