Finish: Zinc Plated/Yellow Zinc Plated/Zinc Flake
Materials: Carbon Steel/Stainless Steel

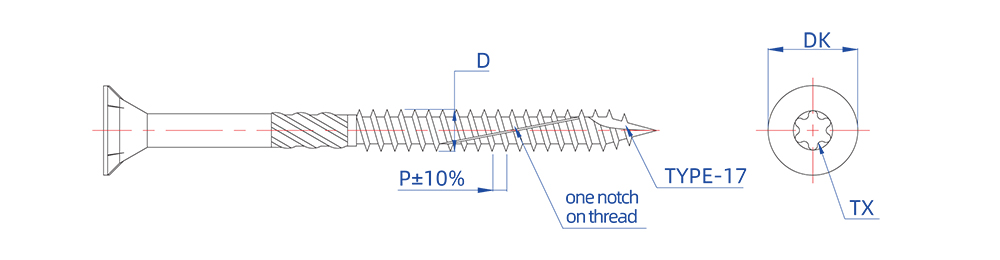

| Size | D | Dk | P | TX | ||
| Max. | Min. | Max. | Min. | ±10% | No. | |
| M3.0 | 3.10 | 2.80 | 6.00 | 5.60 | 1.80 | T10 |
| M3.5 | 3.60 | 3.30 | 7.00 | 6.60 | 2.20 | T15 |
| M4.0 | 4.10 | 3.80 | 8.00 | 7.50 | 2.60 | T20 |
| M4.5 | 4.60 | 4.20 | 9.00 | 8.50 | 2.80 | T25 |
| M5.0 | 5.10 | 4.70 | 10.00 | 9.50 | 3.20 | T25 |
| M6.0 | 6.20 | 5.80 | 12.00 | 11.50 | 4.50 | T30 |
| M8.0 | 8.30 | 7.80 | 15.20 | 14.30 | 5.50 | T40 |
| M10.0 | 10.30 | 9.70 | 18.20 | 17.40 | 6.60 | T40 |
