Finish: Zinc Plated/Yellow Zinc Plated/Zinc Flake
Materials: Carbon Steel/Stainless Steel

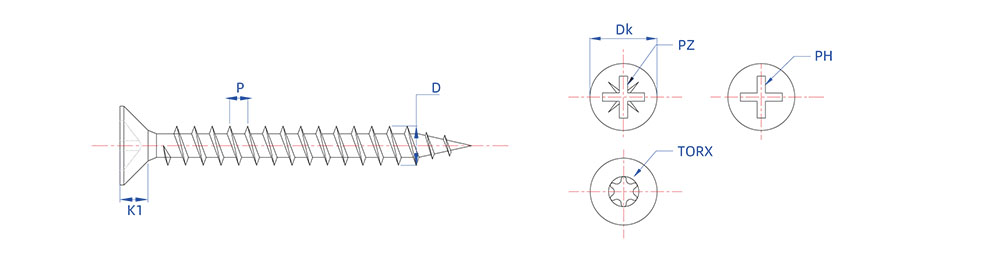

| Size | k1 | D | DK | P | PZ | PH | TORX | |||
| Max. | Min. | Max. | Min. | Max. | Min. | ≈ | No. | No. | No. | |
| M2.5 | 1.19 | 1.35 | 2.50 | 2.30 | 5.00 | 4.50 | 1.10 | 1 | 1 | T10 |
| M3.0 | 1.44 | 1.64 | 3.00 | 2.75 | 6.00 | 5.50 | 1.35 | 1 | 1 | T10 |
| M3.5 | 1.69 | 1.99 | 3.50 | 3.20 | 7.00 | 6.40 | 1.60 | 2 | 2 | T15 |
| M4.0 | 1.95 | 2.25 | 4.00 | 3.70 | 8.00 | 740.00 | 1.80 | 2 | 2 | T20 |
| M4.5 | 2.17 | 2.57 | 4.50 | 4.20 | 9.00 | 8.40 | 2.00 | 2 | 2 | T25 |
| M5.0 | 2.46 | 2.86 | 5.00 | 4.70 | 10.00 | 9.40 | 2.20 | 2 | 2 | T25 |
| M6.0 | 2.94 | 3.44 | 6.00 | 5.70 | 12.00 | 11.30 | 2.60 | 3 | 3 | T30 |
